DIN3202 F6 Non Return Valve Rubber Flap

Product Categories
Fengbao Valve Manufacturing Co., Ltd.
Contact Now

DIN3202 F6 Non Return Valve Rubber Flap

Brand Name : FB valve

Model Number : Ball Check Valve

Certification : ISO9001

Place of Origin : CHINA

MOQ : 50 Pieces

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100 tons/ month

Delivery Time : 7-25 work day

Packaging Details : plywood box

Type : flange ball check valve

Port Size : DN50-DN500, DN25 DN32 DN40 DN50 DN65 DN80

Material : Casting iron

Pressure : Medium Pressure

Application : water treatment

Connection : EN1092-2 flange

Structure : Flanged ball check valve

Working Pressure : PN10/PN16

Contact Now

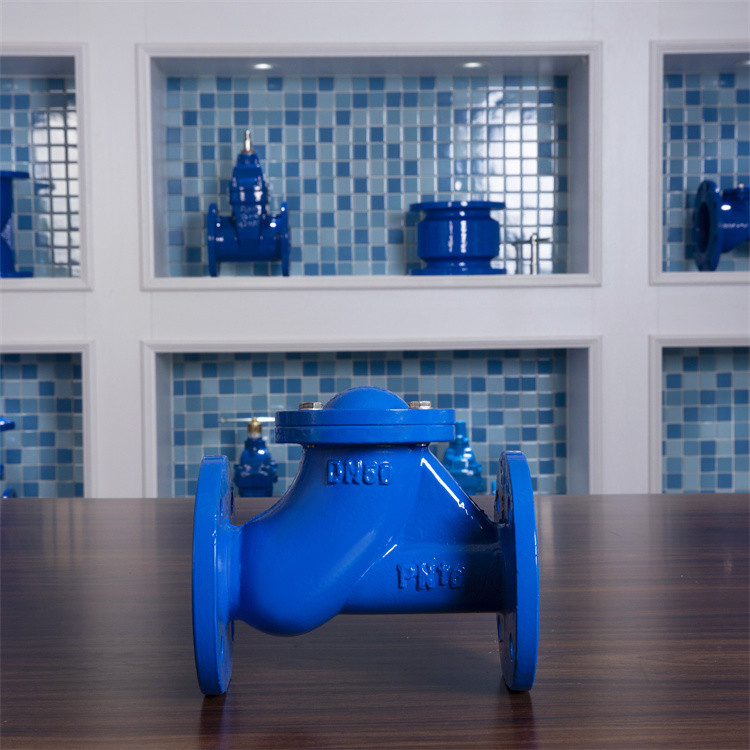

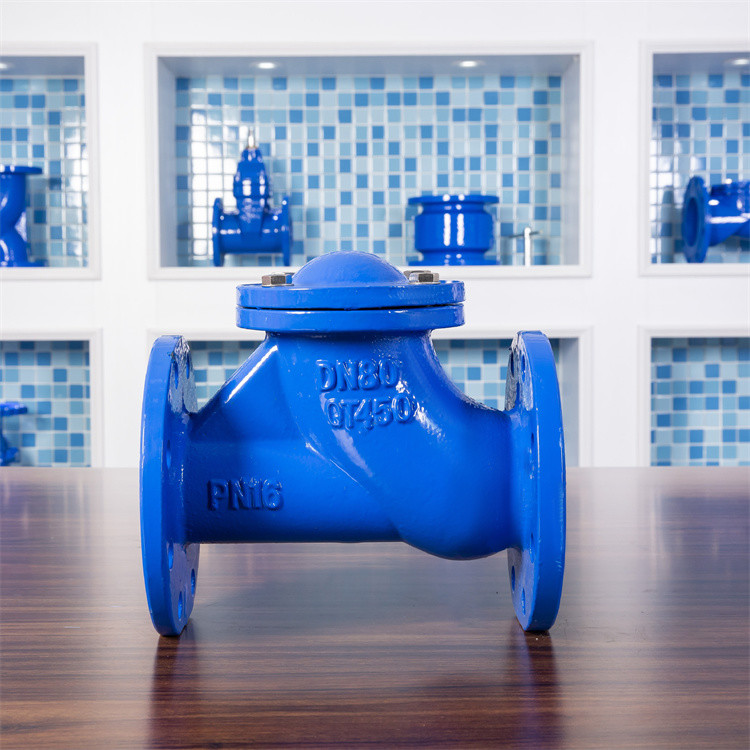

DIN3202 F6 Cast Iron Non-Return Ball Check Valve

product description

Ball check valve is a check valve with multi-ball, multi-channel, multi-cone inverted fluid structure, mainly composed of front and rear valve bodies, rubber balls, cone bodies, etc.

Ball check valve uses bowl classified covered by rubber as valve disc. With the help of medium, the valve disc can roll up-down or right-left to close or open valve. It can avoid water hammer and has good sealing. The valve body adopts the whole water channel, having large flow and low fluid resistance. Head loss is less than swing valve by 50%.

Ball check valve can be installed vertically or horizontally. It can be used in pipe lines for cold water or hot water. It is quite suitable for diving drainage pump. Applicable temperature is 0~80℃.
Technical Parameter:
Model No.Nominal Pressure(MPa)Test Pressure PS(MPa)Working Temperature(℃ )
ShellSeal
HQ41X-10/161.01.51.1≤80
1.62.41.76



Components:

ComponentsMaterials
Body, bonnetDuctile iron, cast steel
Ball rack, baffle plateDuctile iron, cast steel
BallCarbon steel(covered by rubber)

Dimensions:

Nominal Diameter(DN)506580100125150200250300350
L(mm)216241293305381403495622698787
H(mm)185210245280335400495600715800
Connecting DimensionsPN1.0MPa: GB4216.4-84; PN1.6: GB4216.5-84

DIN3202 F6 Non Return Valve Rubber FlapDIN3202 F6 Non Return Valve Rubber FlapDIN3202 F6 Non Return Valve Rubber Flap

DIN3202 F6 Non Return Valve Rubber FlapDIN3202 F6 Non Return Valve Rubber Flap

company profile

Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.

The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.

The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

DIN3202 F6 Non Return Valve Rubber Flap

DIN3202 F6 Non Return Valve Rubber Flap

DIN3202 F6 Non Return Valve Rubber Flap

DIN3202 F6 Non Return Valve Rubber Flap

DIN3202 F6 Non Return Valve Rubber Flap






























































































































































Q: Are you a manufacturer or trading company?
A: We are a valve manufacturer and factory, and not a trading company.
Q: Do you have an agent or representative abroad?
A: We don't have an agent abroad,
please contact us to purchase valves from Fengbao Valve Co., Ltd directly.
Q: What's your product range?
A: We can produce a Gate valve, Check valve, Y strainer,
by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: Is there any stock in your factory? and how about your lead time?
A: We stock valves with normal sizes.
The lead time depends on your quantity, generally 30-40 days.
Q: Which countries do you export to?

A: We export directly to the vast majority of countries in the world.
