GGG50 Ductile Iron Swing Check Valve Rubber Flap German Stand SFCV

Fengbao Valve Manufacturing Co., Ltd.
Contact Now

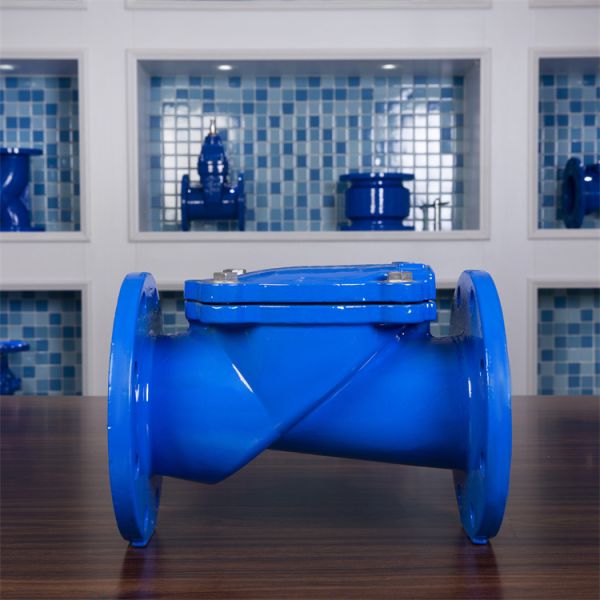

GGG50 Ductile Iron Swing Check Valve Rubber Flap German Stand SFCV

Brand Name : FB valve

Model Number : DN50-DN600

Certification : ISO9001

Place of Origin : CHINA

MOQ : 50 Pieces

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 pcs/ month

Delivery Time : 7-25 work day

Packaging Details : plywood box

Type : Check Valve, Swing Check Valve

Connection : Flange Ends

Temperature : 0-180℃

Pressure : PN16

Material : Ductile Iron QT450-10

Media : Water, water gas oil etc

Structure : Swing

Customize : Acceptable

Specification : DN80

valve body : Ductile Iron

color : random

Contact Now

Rubber Flap Swing Check Valve German Stand Ductile Iron GGG50/GGG40/QT450/QT400 0-180℃ PN16 DN150(SFCV)For Water Gas Oil

product description

The beneficial effects of the present utility model are:

1. A ring-shaped flexible sealing airbag is added on the outer ring of the flap valve, and the flexible sealing airbag is filled with inert gas. The flexible sealing airbag is more conducive to extrusion deformation, so that the flexible sealing airbag can be connected with the check valve body. The sealing surface is in closer contact to ensure the non-return sealing effect of the flap valve;

2. An auxiliary seal recovery mechanism is set on one side of the flap disc. When the liquid on the fluid input side decreases, the auxiliary recovery weight ball in the auxiliary seal recovery mechanism can accelerate the reset of the flap valve under the action of gravity to ensure the stop The back sealing action is reliable, and when the flap valve is opened, the auxiliary return weight ball will not interfere with the action of the flap valve, and will not affect the valve performance;

In a word, the flap valve flap of the utility model has a stable structure, is not easy to be aged and deformed, the flap flap valve flap has reliable check sealing operation, good check sealing effect, and can be used stably for a long time.

Nominal Diameter DN50--DN600
Pressure level 0.6Mpa-1.6Mpa
Applicable medium water, steam, gas, oil, etc.
Applicable temperature 0degrees Celsius - 80 degrees Celsius

Rubber flap check flange thickness (mm) flange outer circle (mm) waterline height (mm) waterline diameter (mm) Height (mm) Length (mm) Weight (KG)
DN50 12.5 155 2 102 161 205 6.5
DN65 12 180 2 123 178 210 7.5
DN80 14 195 2 134 195 220 9
DN100 14.5 215 2 157 215 250 12
DN125 20 245 / / / 280 15
DN150 24 280 / / 280 325 22
DN200 24 335 / / 337 400 35


GGG50 Ductile Iron Swing Check Valve Rubber Flap German Stand SFCV

GGG50 Ductile Iron Swing Check Valve Rubber Flap German Stand SFCV

GGG50 Ductile Iron Swing Check Valve Rubber Flap German Stand SFCVGGG50 Ductile Iron Swing Check Valve Rubber Flap German Stand SFCV

company profile

Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.

The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.

The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

GGG50 Ductile Iron Swing Check Valve Rubber Flap German Stand SFCV

GGG50 Ductile Iron Swing Check Valve Rubber Flap German Stand SFCV

GGG50 Ductile Iron Swing Check Valve Rubber Flap German Stand SFCV

GGG50 Ductile Iron Swing Check Valve Rubber Flap German Stand SFCV

GGG50 Ductile Iron Swing Check Valve Rubber Flap German Stand SFCV

Q : How long is your delivery time?

A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.

Q : Do you provide samples ? is it free or extra ?

A : Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q : What is your terms of payment ?

A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
